OD-FP SERIES
1 / 6
Specifications
Compare every verified size in one view.
Shared platform specifications cover the product line. Size-specific display area, dimensions and weight are listed separately.

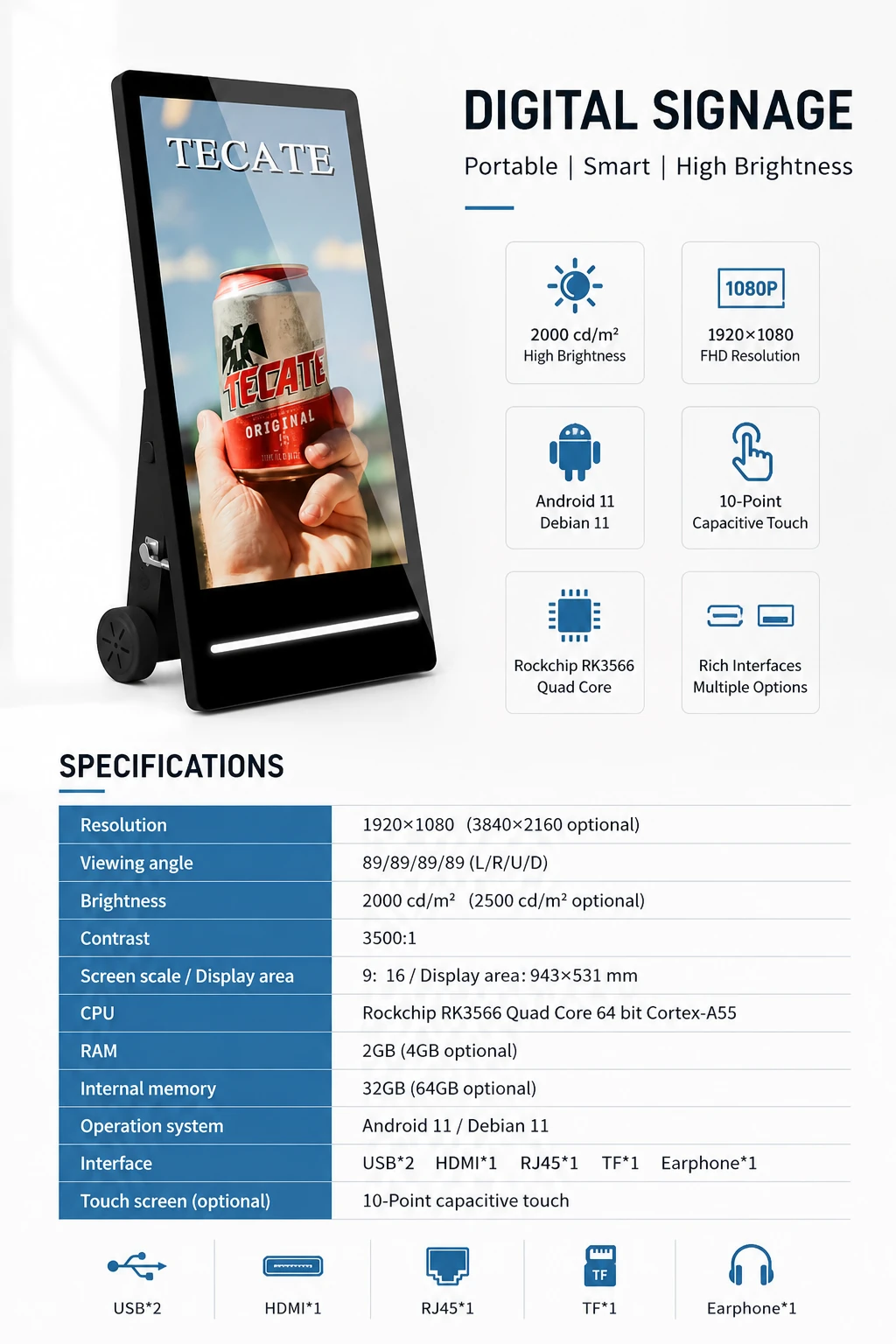

| Specification | 32"OD320FP-3566 | 43"OD430FP-3566 | 55"OD550FP-3566 |
|---|---|---|---|
| Model | OD320FP-3566 | OD430FP-3566 | OD550FP-3566 |
| Screen size | 32" | 43" | 55" |
| Resolution | 1920×1080 (4K optional)All verified sizes | ||
| Brightness | 1800 cd/m² (2500 optional)All verified sizes | ||
| Contrast | 3500:1All verified sizes | ||
| CPU | Rockchip RK3566 Quad Core Cortex-A55All verified sizes | ||
| Memory | 2 GB RAM / 32 GB storage (4 GB / 64 GB optional)All verified sizes | ||
| Operating system | Android 11 / Debian 11All verified sizes | ||
| Touch | 10-point capacitive touch (optional)All verified sizes | ||
| Protection | IP65All verified sizes | ||
| Working temperature | -30 to 80 °CAll verified sizes | ||
| Battery capacity | 45 Ah | 45 Ah | 50 / 55 Ah |
| Body size | 991 × 448 × 140 mm | 1236 × 588 × 170 mm | 1400 × 756 × 140 mm |
| Net weight | 36 kg | 46 kg | 65 kg |
| Power consumption | ≤100 WAll verified sizes | ||
Specifications come from the current approved factory specification. Values for request-only sizes are not inferred from neighbouring models.
In detail
Product construction and finish.
Construction, ports and finish of the OD-FP Series lcd outdoor poster, shown the way our factory documents every build.
Demonstration
See the product in motion.
Rain demonstration of the wheeled Wintouch LCD Outdoor Poster operating outside.
- Duration
- 15.09s
- Resolution
- 720 × 1280
- Formats
- MP4
- Audio
- AAC
Demo · 0:15
Spec this product
