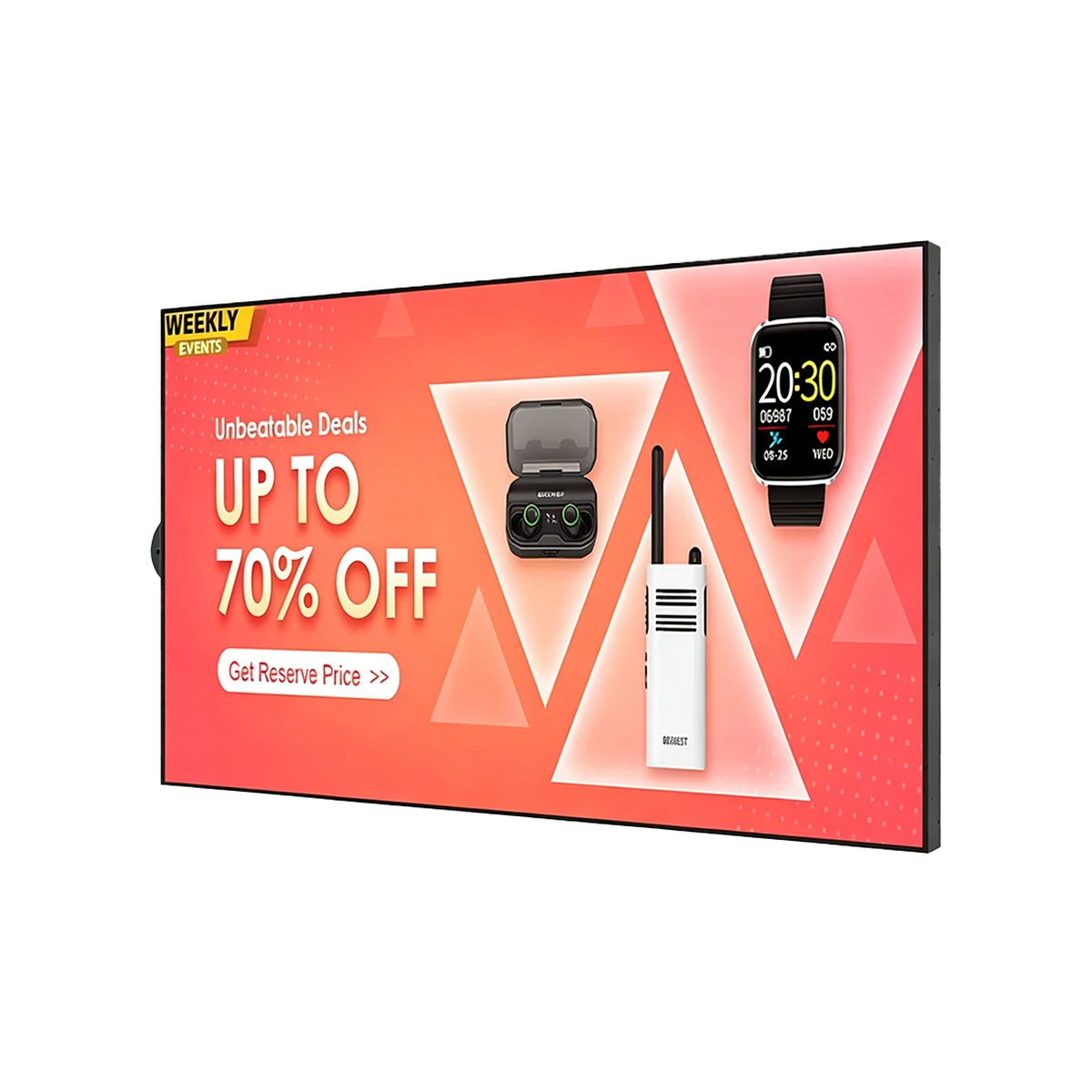

Wintouch High-Brightness Window Display, landscape front view on a white background
WT-HB SERIES
1 / 10
Specifications

Compare every verified size in one view.

Shared platform specifications cover the product line. Size-specific display area, dimensions and weight are listed separately.

High-Brightness Window Display specifications compared across verified screen sizes: 5
Specification43"WT430HB-356649"WT490HB-356655"WT550HB-356665"WT650HB-356675"WT750HB-3566
ModelWT430HB-3566WT490HB-3566WT550HB-3566WT650HB-3566WT750HB-3566
Screen size43"49"55"65"75"
Resolution1920×10801920×10801920×10801920×10803840×2160
Brightness2500 cd/m²2500 cd/m²2500 cd/m²2500 cd/m²3500 cd/m²
Contrast1000:11000:11000:11000:11200:1
CPURockchip RK3566 Quad Core 64-bit Cortex-A55All verified sizes
Memory2 GB (4 GB optional)2 GB (4 GB optional)2 GB (4 GB optional)2 GB (4 GB optional)4 GB (8 GB optional)
Internal storage32 GB (64 GB optional)All verified sizes
Operating systemAndroid 11Android 11Android 11Android 11Android 11 / Debian 11
Touch10-point capacitive touch (optional)All verified sizes
NetworkWi-Fi, Gigabit Ethernet, Bluetooth 5.2, optional 4G/5GAll verified sizes
ProtectionIP43 with brightness sensingAll verified sizes
CoolingIntelligent fan with integrated temperature controlAll verified sizes
Working temperature-30 to 80 °CAll verified sizes
Display area941 × 529 mm1078 × 608 mm1209.6 × 680.4 mm1430 × 800 mm1649.7 × 927.9 mm
Body size974.6 × 562.8 × 55.5 mm1109.4 × 639.6 × 55.5 mm1209 × 680 × 55.5 mm1430 × 800 × 51 mm1676.5 × 954.7 × 83 mm
Net weight13 kg16 kg20 kg29 kg39 kg
Power consumption≤550 WAll verified sizes

Specifications come from the current approved factory specification. Values for request-only sizes are not inferred from neighbouring models.

In detail

Product features and applications.

Playback, installation and application options for the complete WT-HB Series window display.

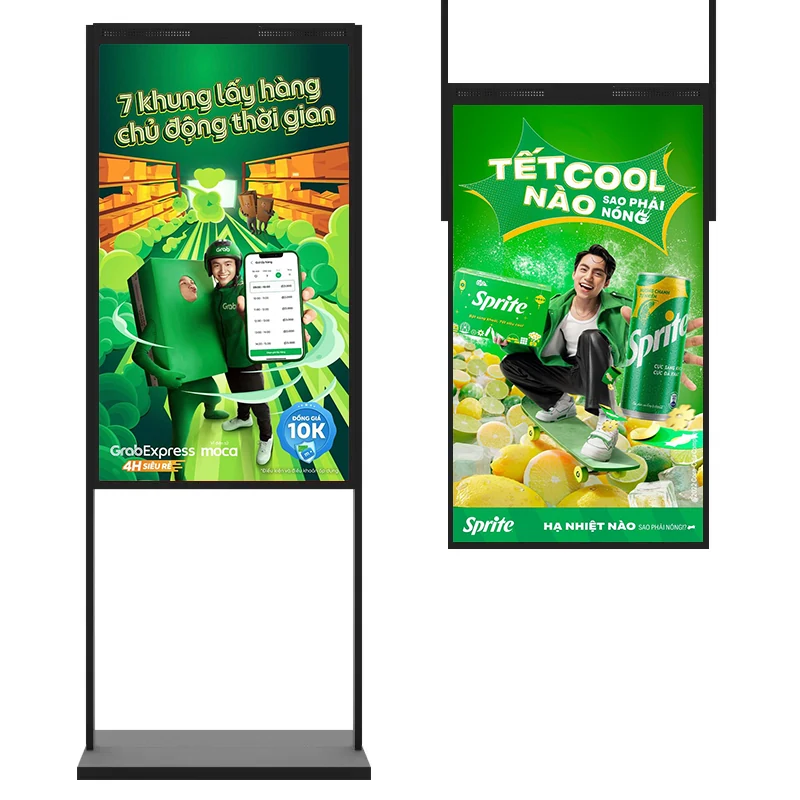

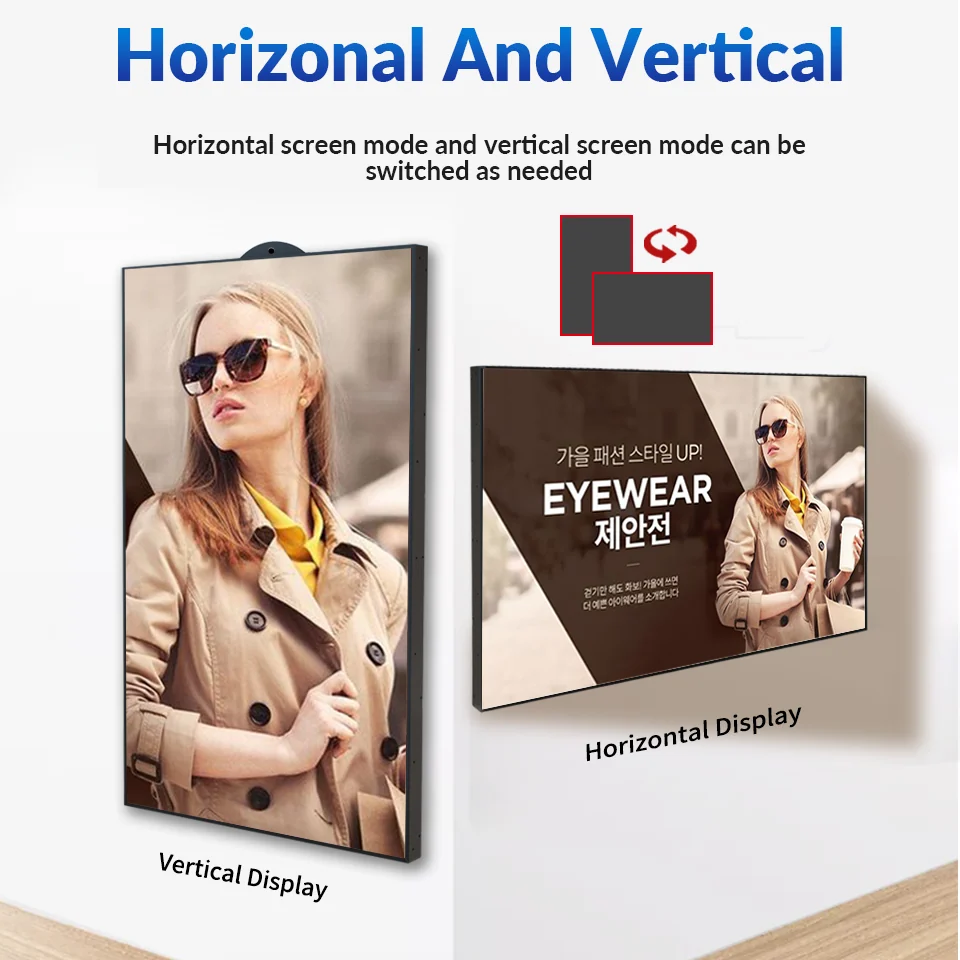

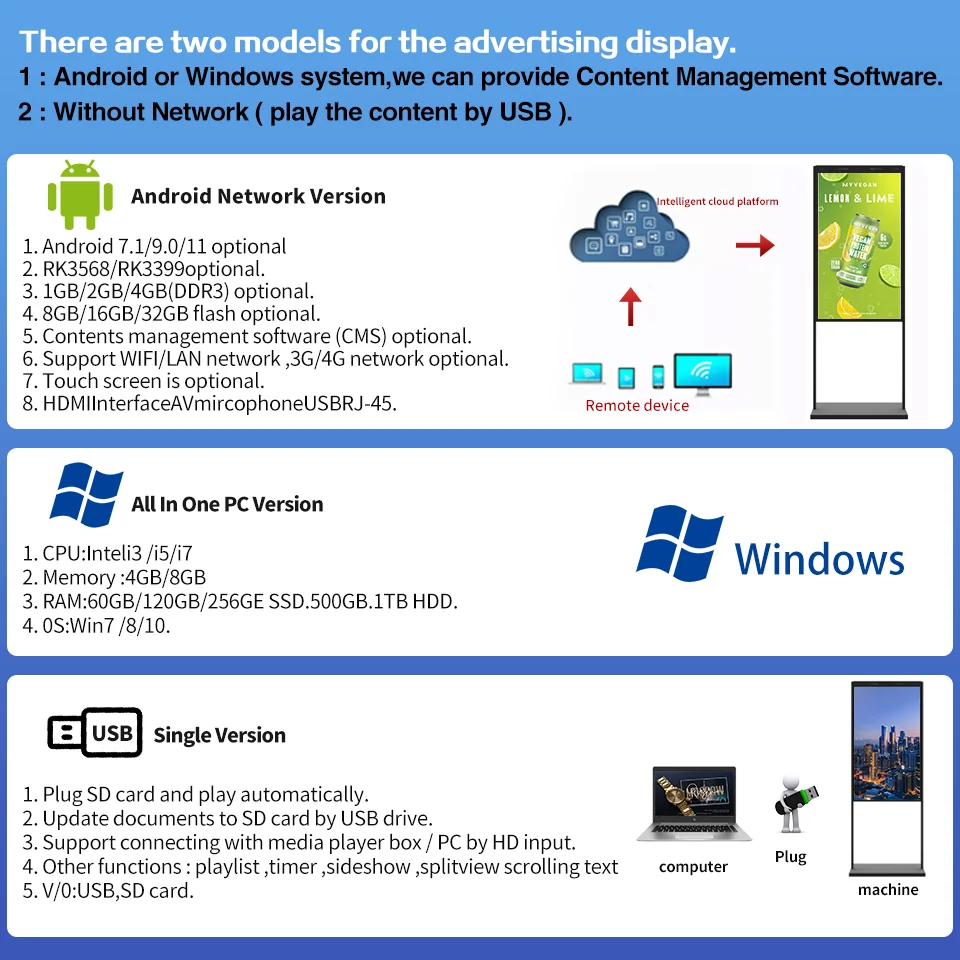

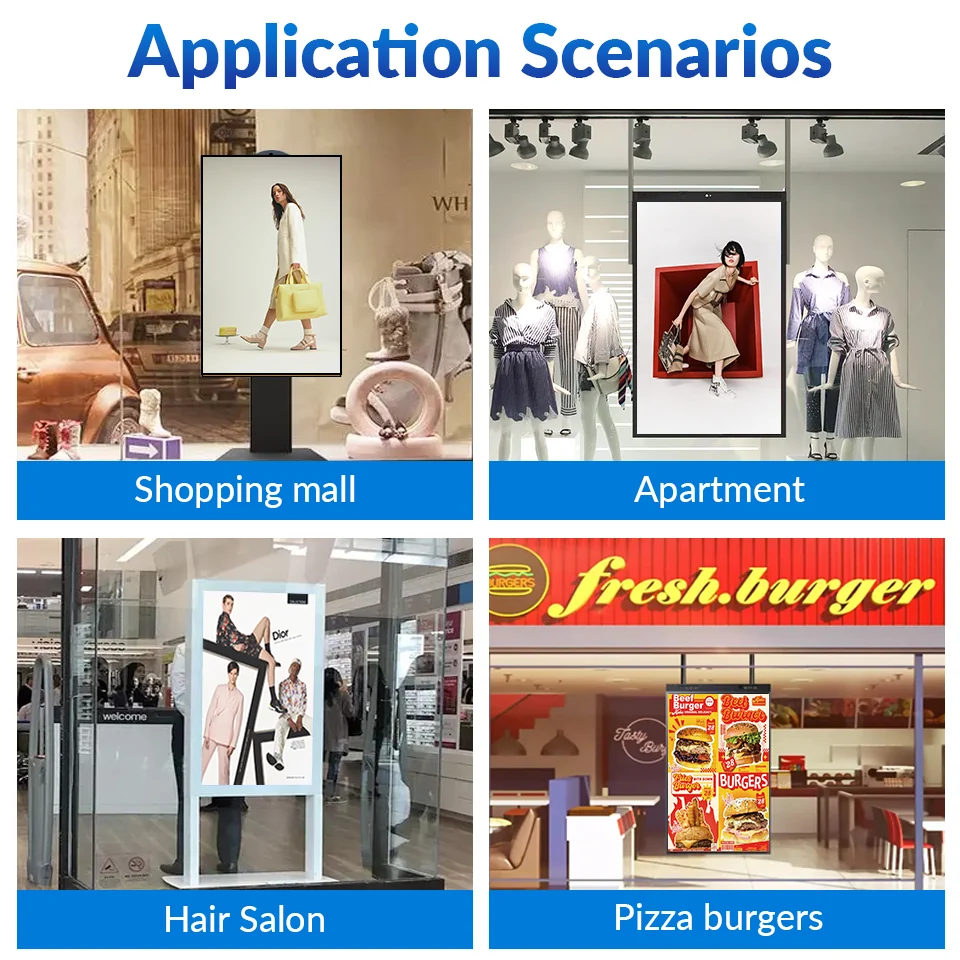

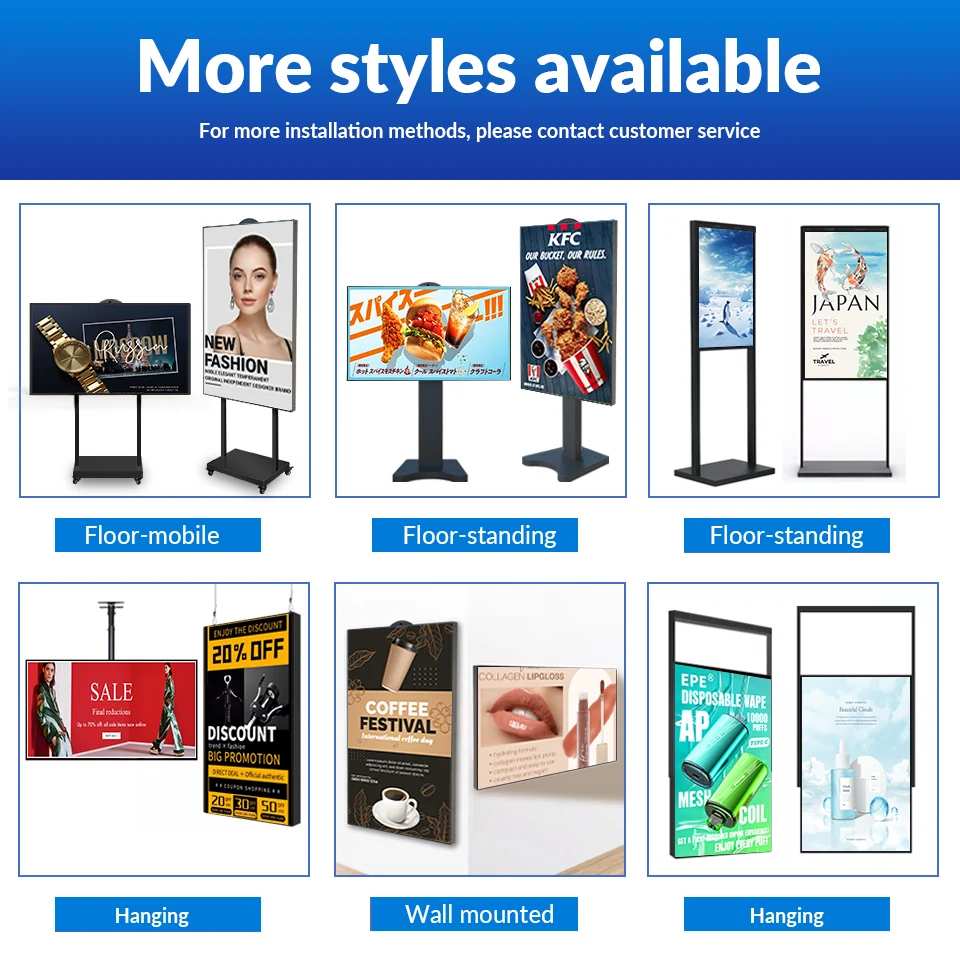

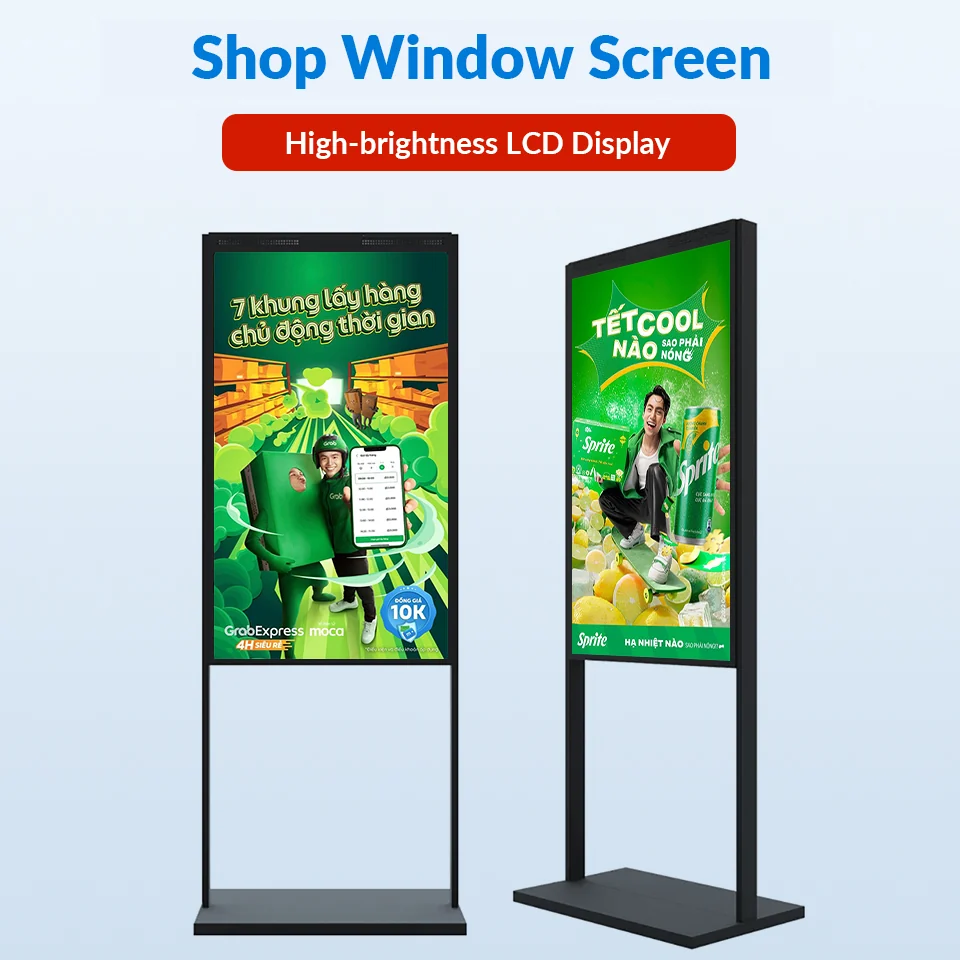

Wintouch Window Display, Shop Window Screen product overviewWintouch Window Display, horizontal and vertical split-screen playback modesWintouch Window Display, standalone USB media playbackWintouch Window Display, 2500 nit high-brightness display comparisonWintouch Window Display, horizontal and vertical orientation optionsWintouch Window Display, floor, hanging and wall installation optionsWintouch Window Display, retail and hospitality application examplesWintouch Window Display, Android, Windows and standalone USB versions
