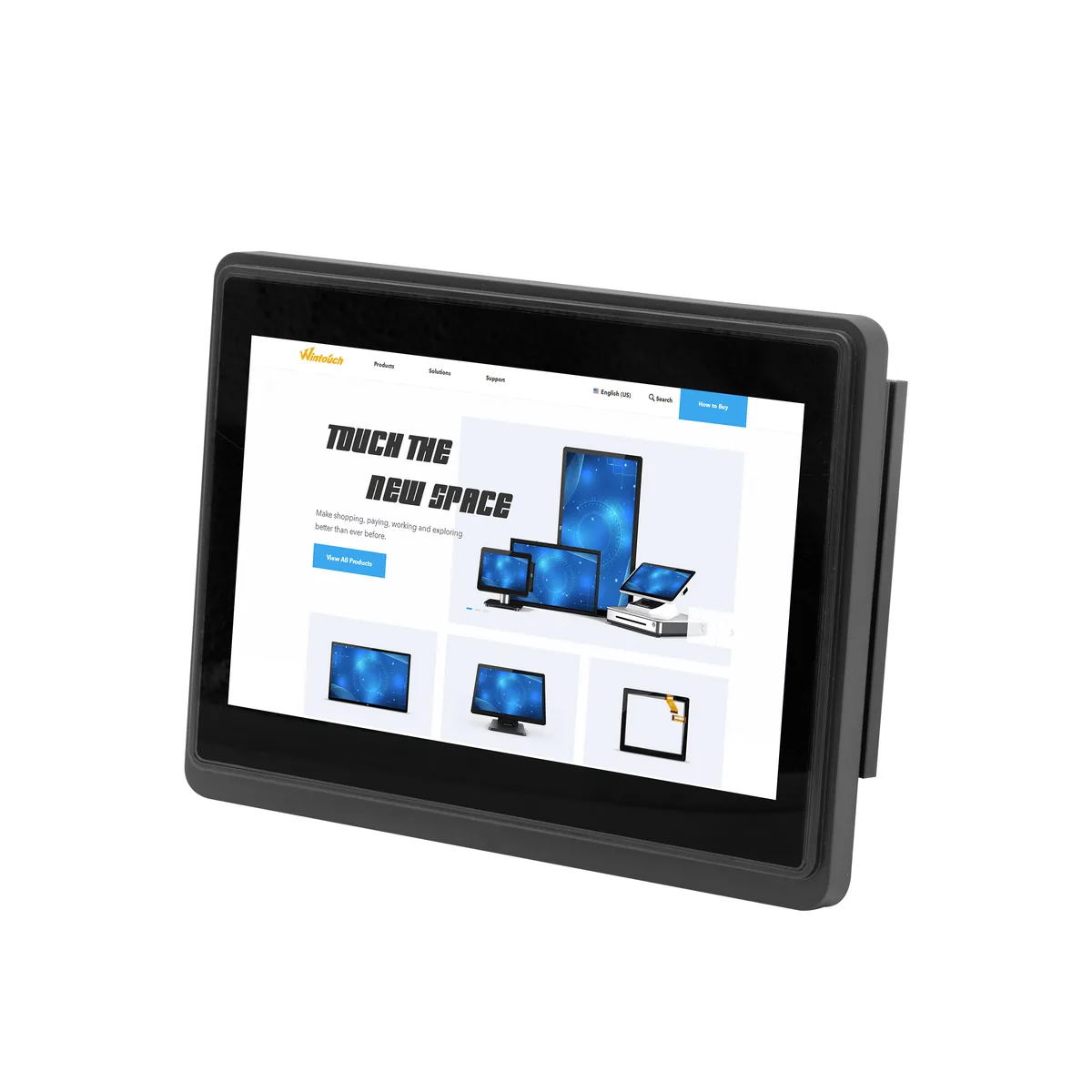

7" Outdoor High Brightness Touch Monitors

Wintouch capacitive touch monitors have a modern, sleek edge-to-edge glass front with an IP65 water- and dust-resistant front panel. The line supports 10-finger projected-capacitive touch, Mohs 7 cover glass, optional chemically etched anti-glare treatment and lockable USB-B, HDMI, DVI-D, VGA, audio and DC input connections. Every model uses an A+ industrial LCD panel with Wintouch's 100% no-pixel-error guarantee. Models from 13.3 to 21.5 inches include a desktop stand and rear VESA mounting patterns.

These monitors suit POS systems, industrial control panels, kiosk systems, office and residential automation, digital signage, shopping centres, classrooms, hotels and other commercial installations.

Strengthened cover glass with patented IP65 front protection.
LED-backlit A+ quality LCD panel.
High-definition panel with wide colour gamut.
10-finger projected-capacitive multitouch.
Optical bonding available as an option.
Anti-glare surface treatment available as an option.

Screen size: 7 inch TFT LCD
Resolution: 1024×600
Brightness: 350 cd/m² (500/1000 optional)
Touch: 10-point projected capacitive
Protection: IP65 front
Working temperature: -10 to +65 °C

Specifications

Full specifications for procurement.

Copy the structured specifications into your request for quotation or bill of materials.

Specifications come from the current approved factory specification. Values for request-only sizes are not inferred from neighbouring models. product data policy.

Specifications · 30 rows

Model: WT070B24
Available variants: WT070B04 non-touch / WT070B24 capacitive / WT070B24-1000 high brightness
Body size: W182.5 × H129.5 × D35.3 mm
Active area: 154.6 × 86.3 mm
VESA mounting: 75 × 75 mm (VESA 100 option by configuration)
Screen technology: 7 inch TFT LCD with LED backlight, A+ panel quality
Resolution: 1024 × 600
Viewing angle: 170° horizontal / 170° vertical
Display colours: 16.7 million
Brightness: 350 cd/m² standard, 500 or 1000 cd/m² optional
Contrast: 1000:1
Touch: 10-point projected capacitive touch
Light transmission: ≥88% touch / ≥92% non-touch
Touch input: Finger, handwriting or capacitive pen via USB-B
Touch response and accuracy: ≤15 ms response, ±2 mm over 90% of area, minimum touch diameter ≥10 mm

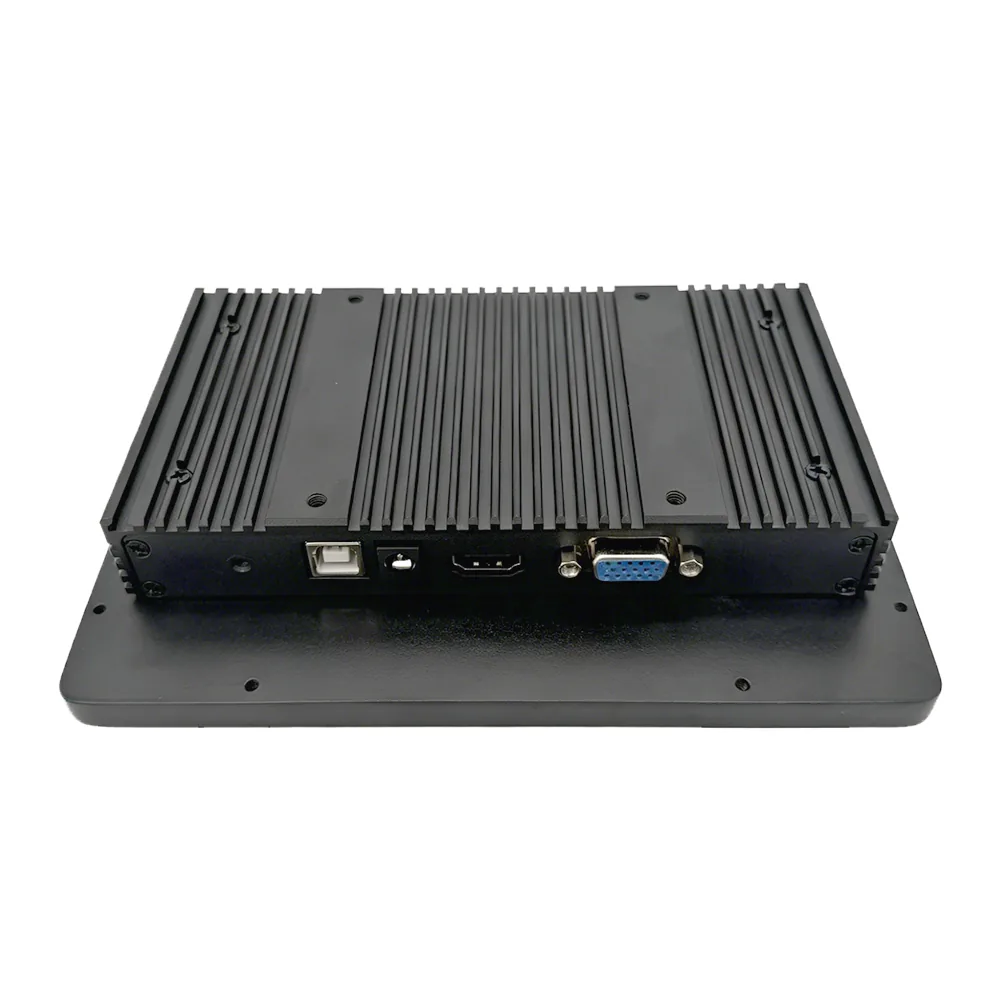

Video and touch interfaces: HDMI up to 1080p, VGA analogue, USB-B touch, optional audio input
Power input: DC 12V standard, 8-36V wide-voltage input optional, GND terminal
Power consumption: 10 W operating / 0.5 W standby
Working temperature: -10 to +65 °C
Storage temperature: -30 to +80 °C
Relative humidity: Up to 95%, non-condensing
Vibration resistance: IEC 60068-2-64, random 5-500 Hz, 1 hour per axis
Impact resistance: IEC 60068-2-27, half-sine, 11 ms
Certifications: CE standard; CCC, FCC, EMC, CB and RoHS optional
Display controller: F119 AD board with MTK display chip

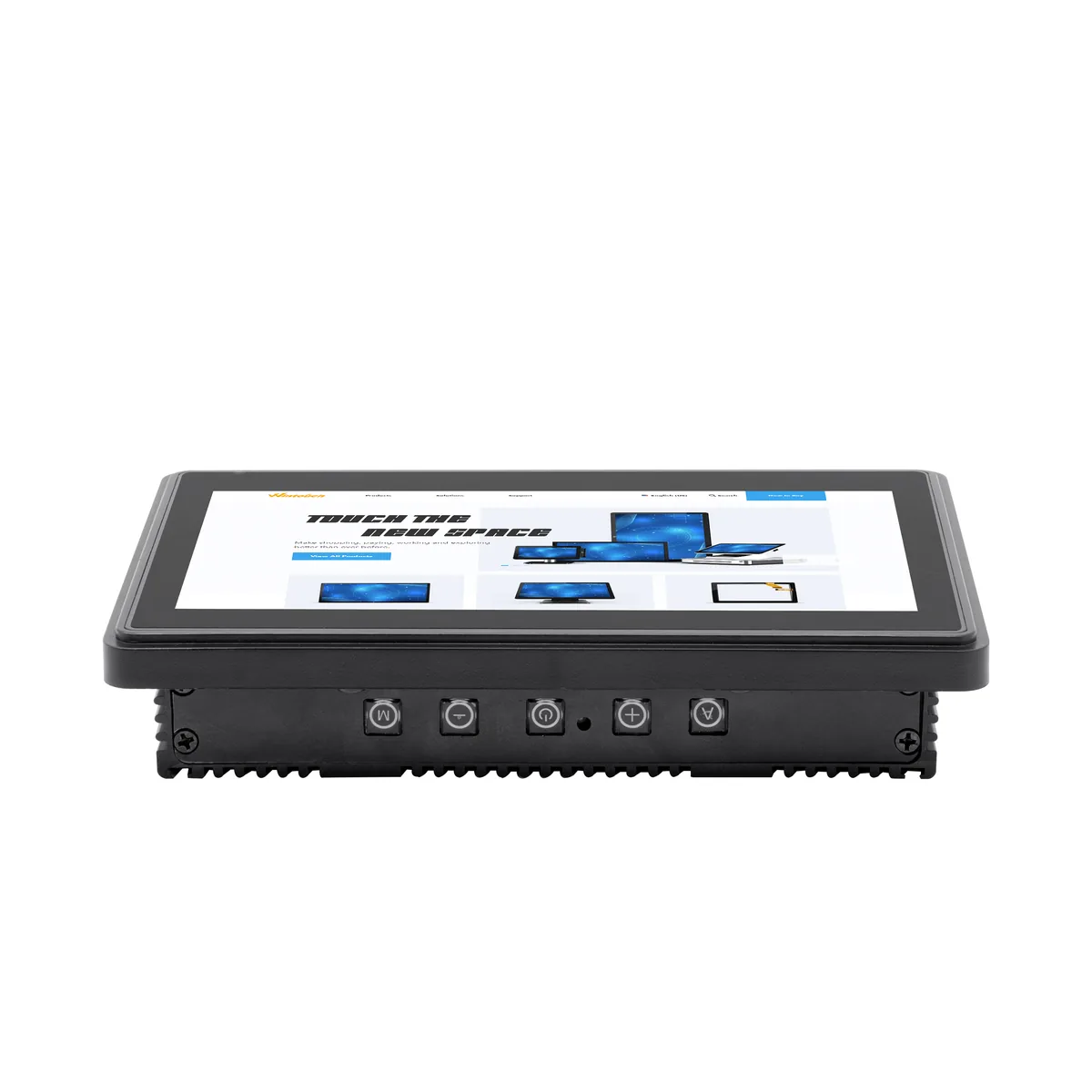

Controls and language: Auto, Menu, Power, Left and Right keys; multilingual OSD, English default
Video compatibility: PC-RGB up to 1920 × 1080 at 60 Hz
Net weight: 0.8 kg
Gross weight: 1.2 kg
Package size: 275 × 230 × 70 mm

In detail

Industrial display features and applications.

IP65 front protection, high brightness, 10-point touch, mounting options and operating environments for the complete industrial monitor line.

Wintouch industrial touch monitor, product feature detail 1

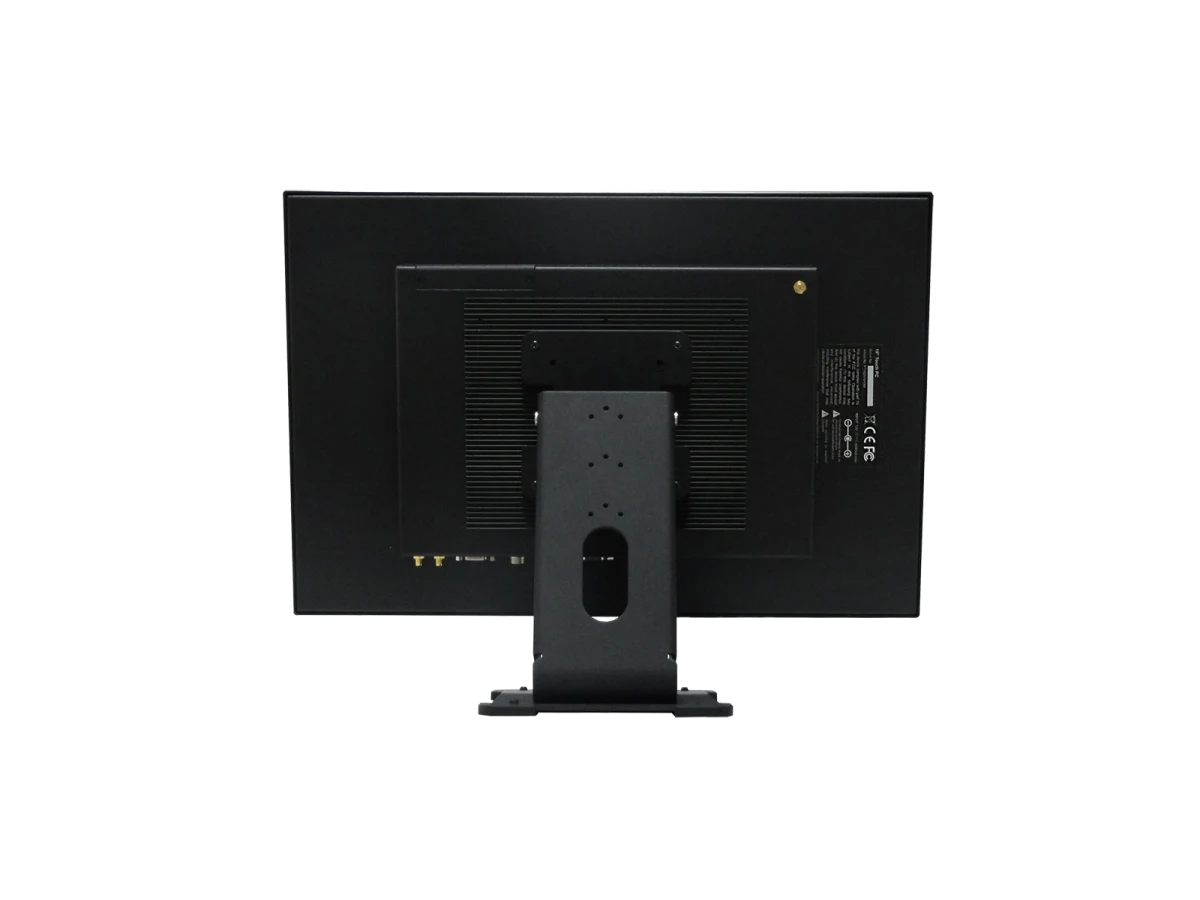

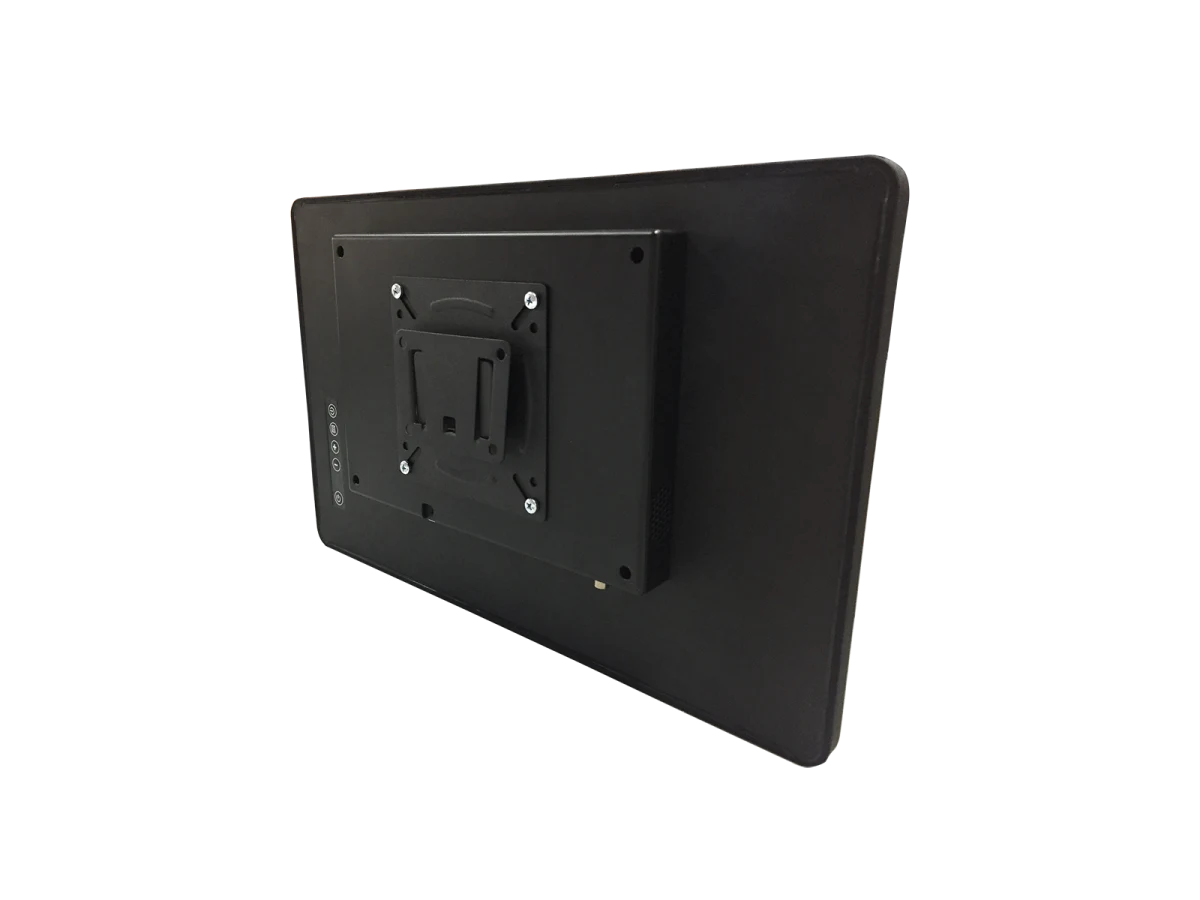

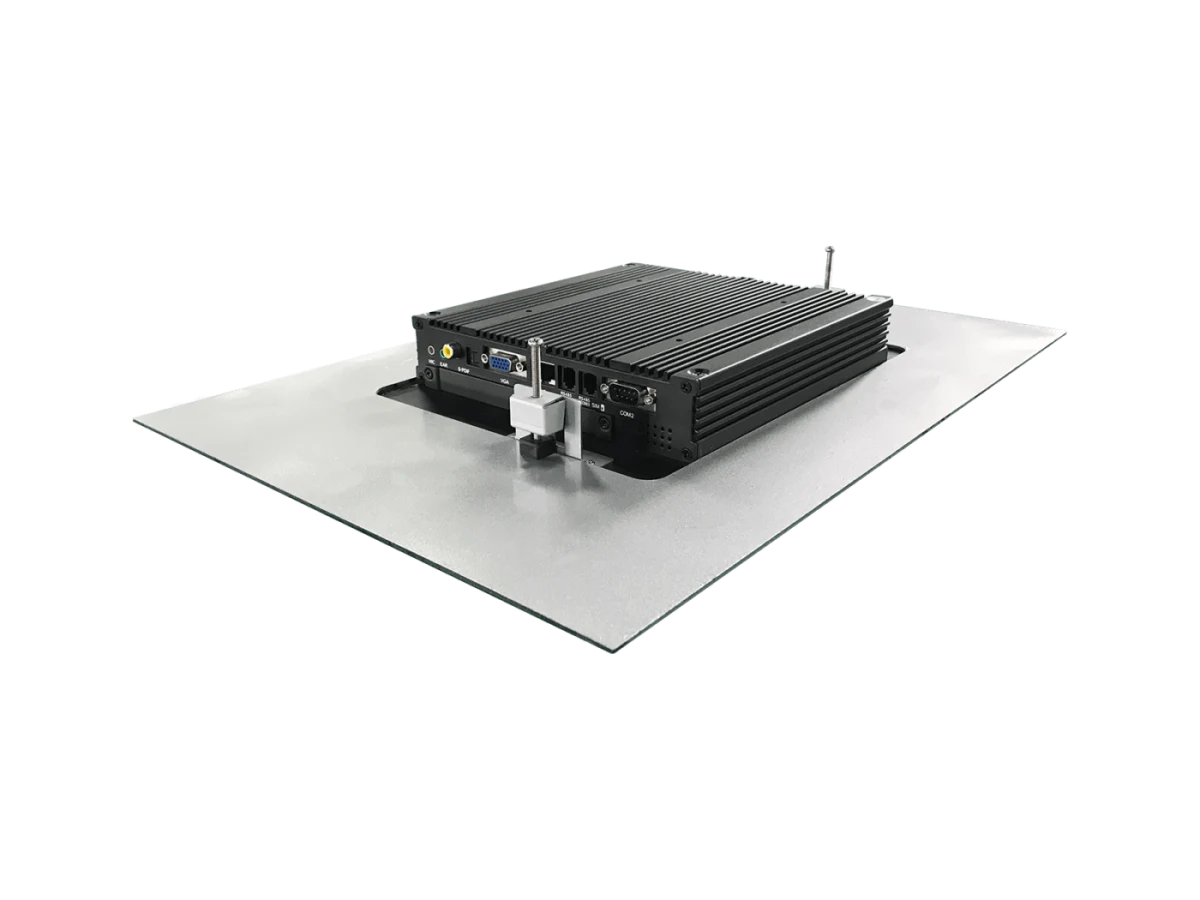

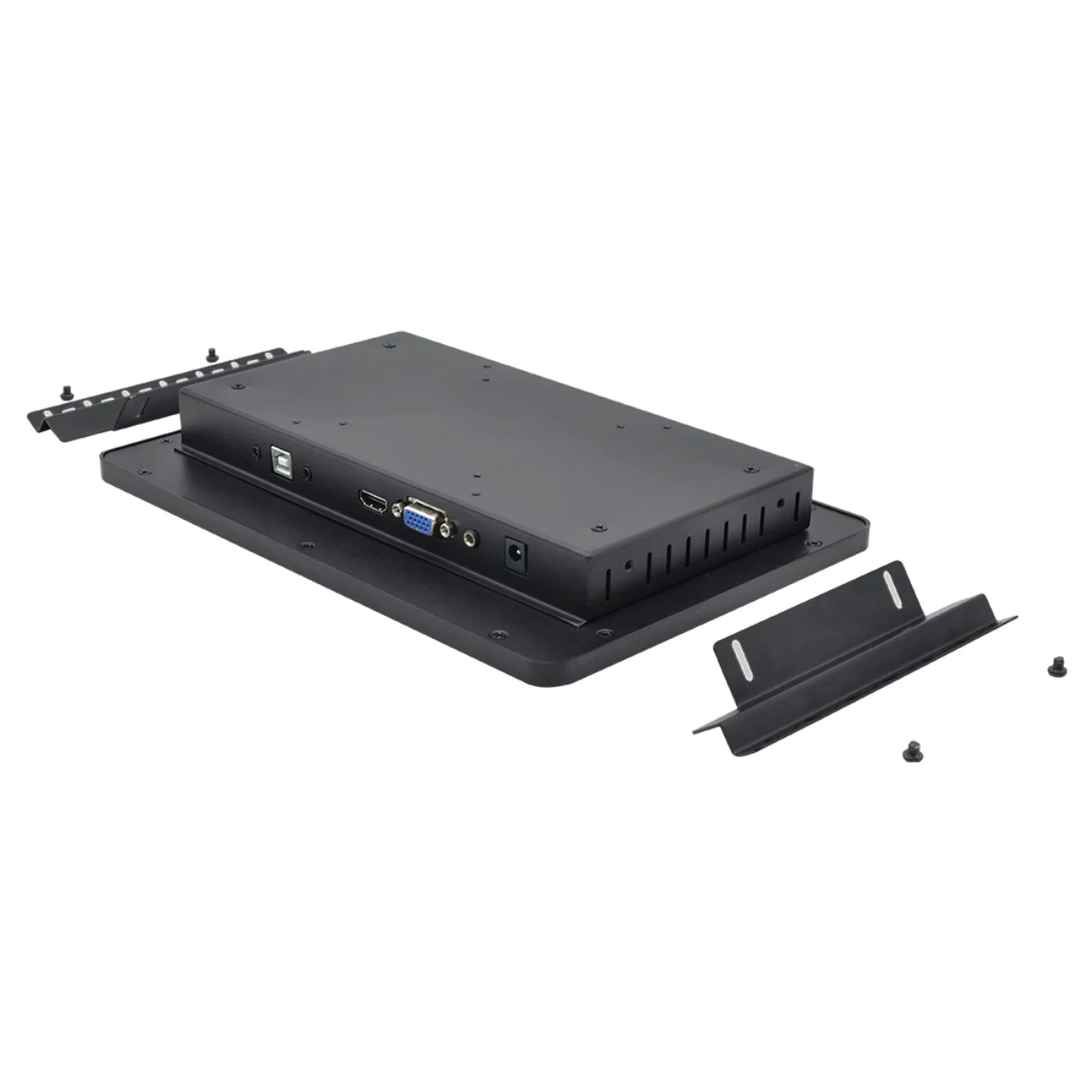

Installation methods

Choose the mounting method during mechanical integration. Confirm the rear clearance, bracket position and final VESA pattern against the dimension drawing before production.
